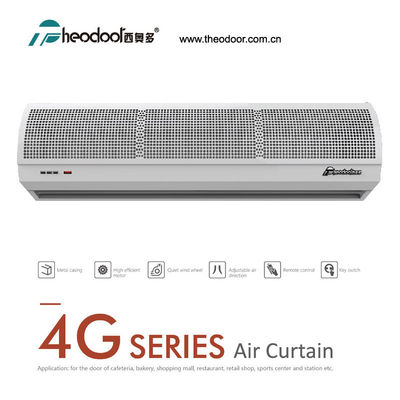

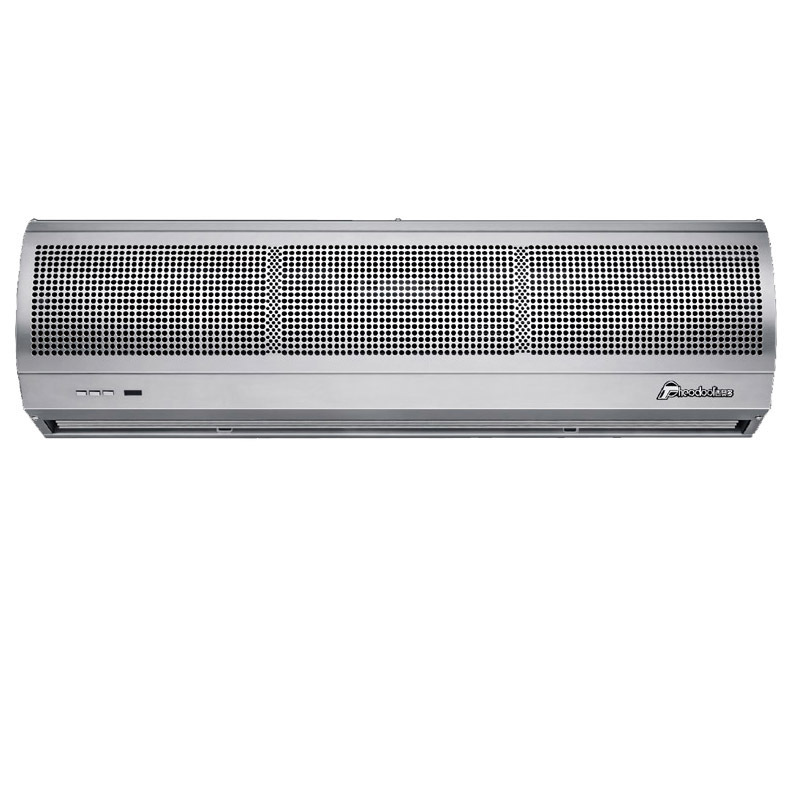

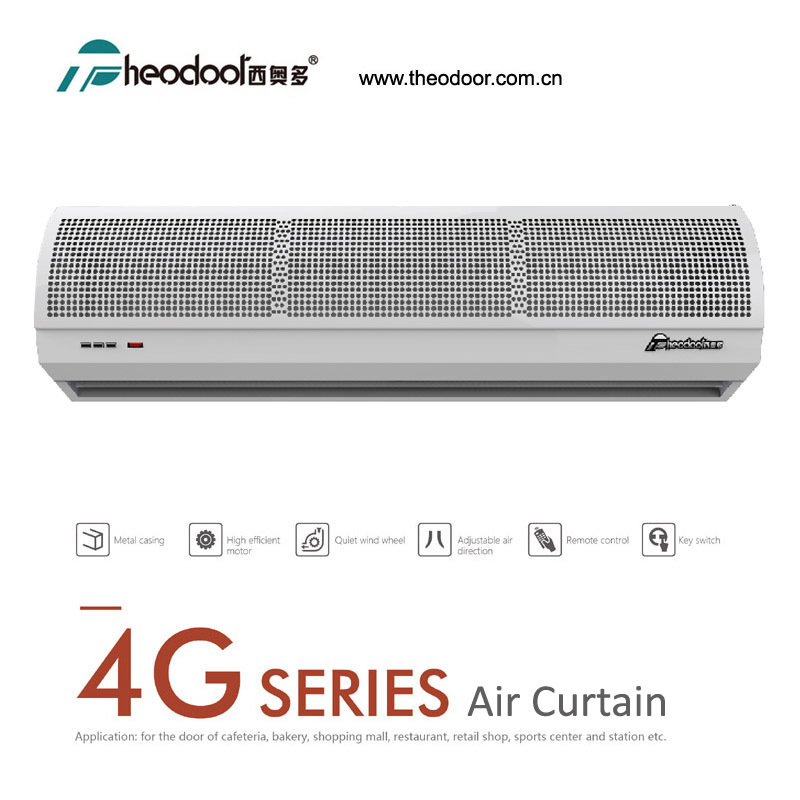

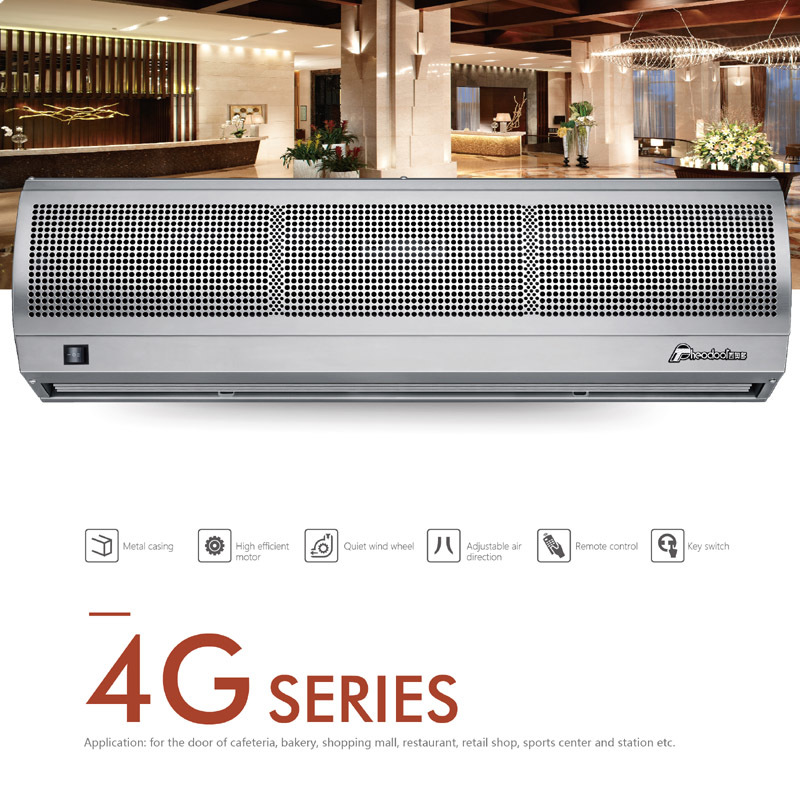

SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors

100
MOQ
$199
মূল্য
SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Voltage/Frequency: 220V/50-60Hz
Size: 900x190x230mm to 2000x219x263mm
Length: 900mm to 2000mm
Air velocity: 9-11m/s to 9-13m/s
Air volume: 1400m3/h to 4400m3/h
Noise level: 55dB to 73dB
Power: 160W to 450W
Net weight: 10.5kg to 27kg
Motor type: High efficient motor
Operation time: 5000h continuous
Shell material: Stainless steel (SS304)
Control type: Remote control/key switch
Air flow: Stable & even
Body design: Super thin
Protection: Overheat protector
বিশেষভাবে তুলে ধরা:

SS304 commercial air curtain

,

900mm cross flow air curtain

,

compact air curtain 1600m3/h

মৌলিক তথ্য
প্রদান
পণ্যের বর্ণনা
Air Conditioning Air Quality Equipment Cross Flow Type SS304 Air Strip Hanging Door Curtain
Product Description

Indoor Air Conditioning Equipment Cross Flow Type SS304 Air Strip Hanging Door Curtain designed for commercial applications.

Applications

Ideal for doors of cafeterias, bakeries, shopping malls, restaurants, retail shops, sports centers, and stations.

Key Features

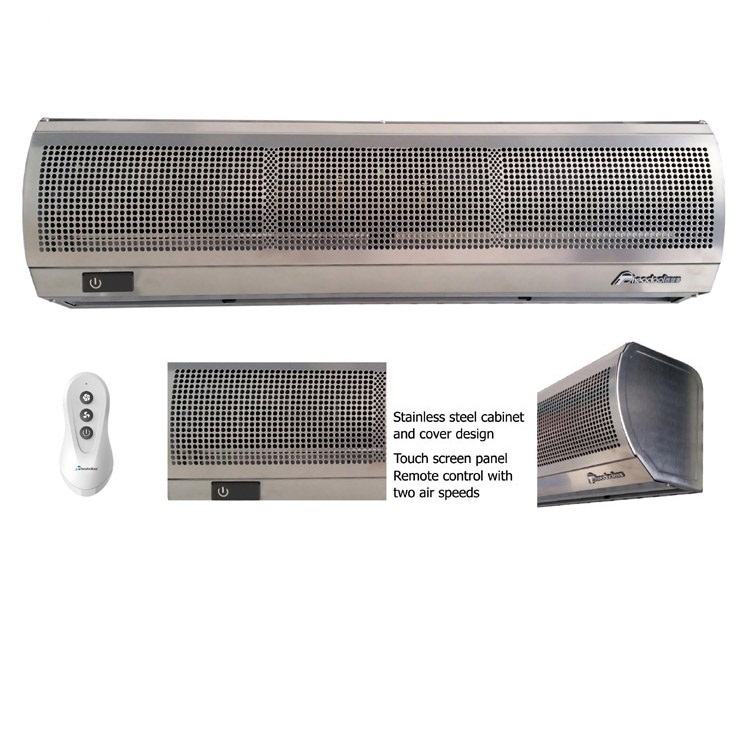

  • Elegant appearance: Full metal (or stainless steel) shell with super thin body design, easy to clean and rust-resistant
  • Stable performance: High efficiency motor with overheat protector, capable of continuous operation for 5000 hours without failure
  • Low noise operation: Optimized fan wheel provides stable and even airflow
  • Easy operation: Remote control or key switch operation with adjustable high and low air speed settings
SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 0
Technical Specifications
Model Volt/Frequency (v/hz) Size (mm) Length (mm) Air Velocity (m/s) Air Volume (m3/h) Noise (dB) Power (w) Net Weight
FM-1209S2 220v/50-60hz 900x190x230 900 9-11 1400 55 160 10.5
FM-1210S2 220v/50-60hz 1000x190x230 1000 9-11 1600 56 180 11
FM-1212S2 220v/50-60hz 1200x190x230 1200 9-11 1900 56 190 13.5
FM-1215S2 220v/50-60hz 1500x190x230 1500 9-11 2500 57 230 16.5
FM-1218S2 220v/50-60hz 1800x190x230 1800 9-11 3200 58 300 19.5
FM-1220S2 220v/50-60hz 2000x190x230 2000 9-11 3600 59 350 22.5
FM-1509S2 220v/50-60hz 900x219x263 900 9-13 2000 67 230 15
FM-1512S2 220v/50-60hz 1200x219x263 1200 9-13 2800 69 350 19
FM-1515S2 220v/50-60hz 1500x219x263 1500 9-13 3600 71 430 23
FM-1518S2 220v/50-60hz 1800x219x263 1800 9-13 4400 73 450 27
What is an Air Curtain?

Theodoor Air Curtain is installed above entryways of stores, restaurants, hotels, and other commercial spaces. It effectively isolates indoor and outdoor environments, maintaining temperature and humidity levels. Particularly useful in air-conditioned spaces, it helps conserve energy by reducing the workload on refrigeration equipment. Additionally, the air curtain prevents the intrusion of dust, pests, and harmful fumes from outside, maintaining a comfortable and clean indoor environment.

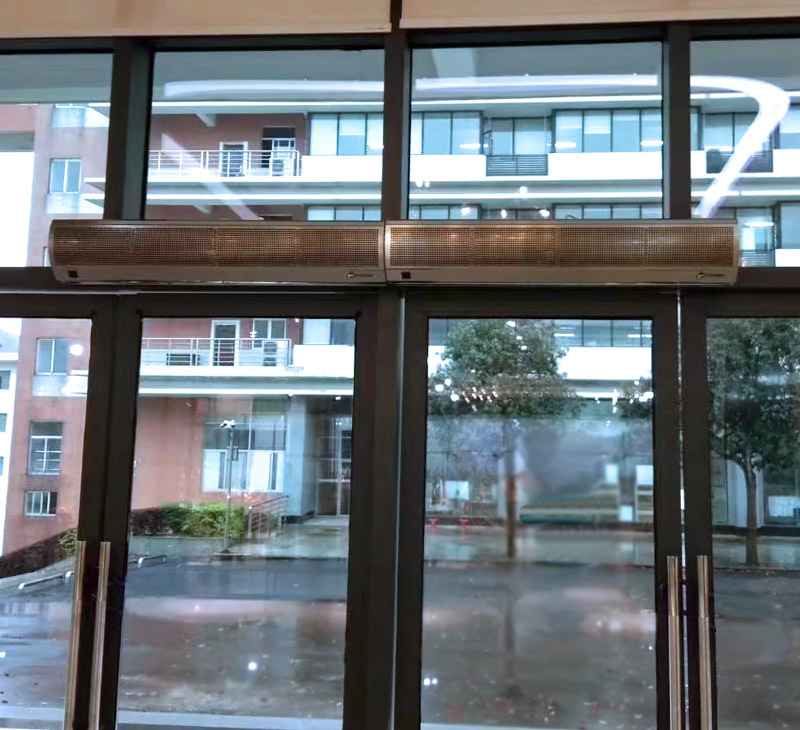

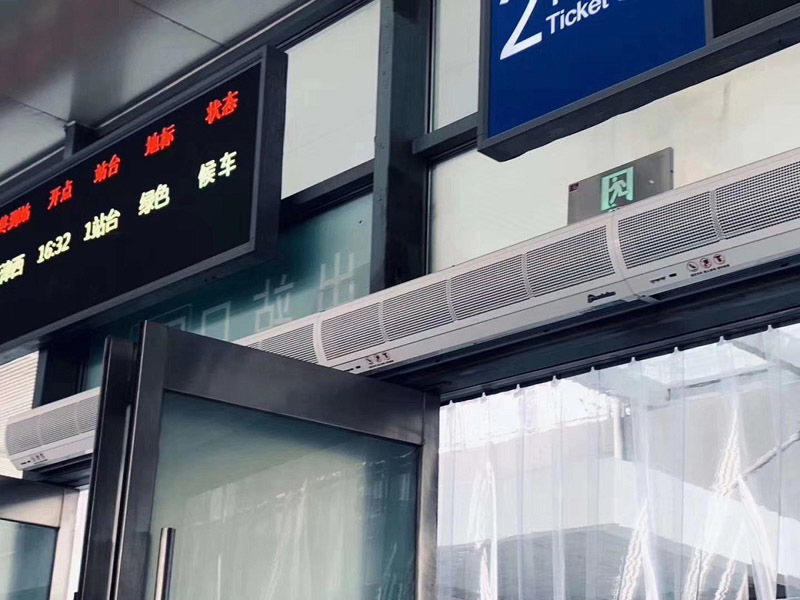

SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 1 SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 2 SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 3
Packaging & Shipping
SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 4
Company Information
SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 5 SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 6 SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors 7
